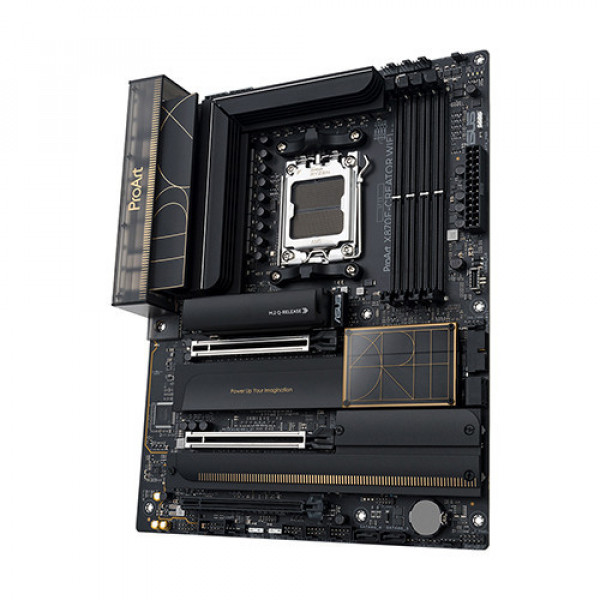

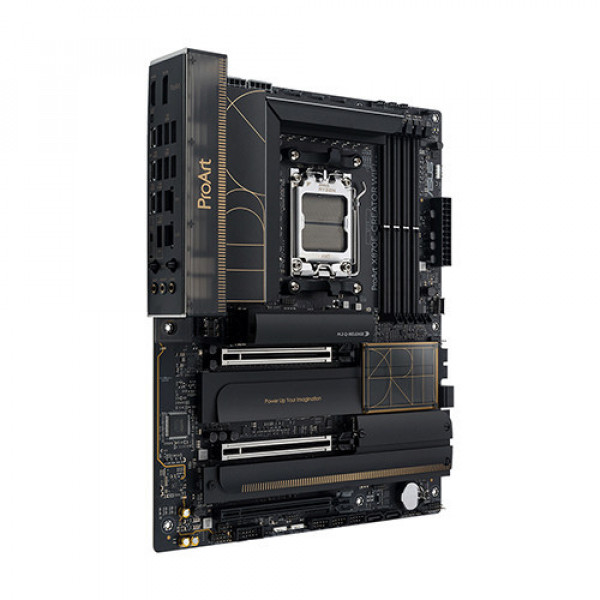

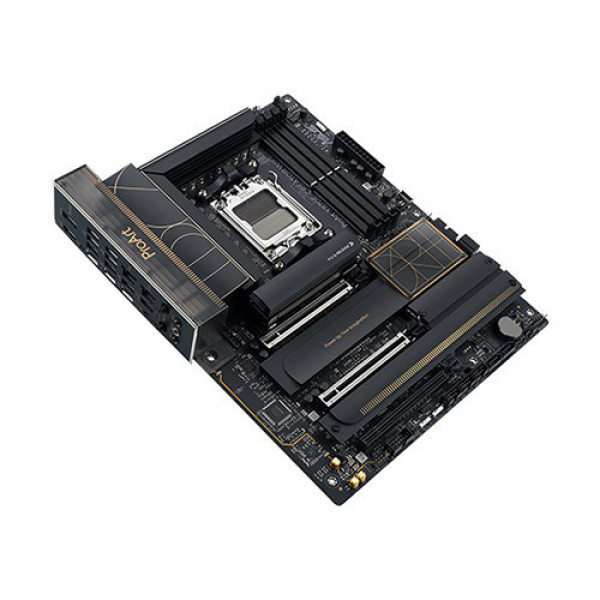

Mainboard Asus ProArt X870E-CREATOR WIFI DDR5

Kết nối mạng

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Loại RAM

DDR5

Bus RAM hỗ trợ

4 x DIMM slots, max. 192GB, DDR5
Supports up to
8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
8000+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)

Thông số (Lan/Wireless)

Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth® v5.4
Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.

Khe cắm trong

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports AMD RyzenTM 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

Khe cắm mở rộng

MD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Please check the PCIe bifurcation table on the support site (https://www.Asus.Com/support/FAQ/1037507/).
PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.
- To ensure compatibility of the device installed, please refer to
Https://www.Asus.Com/support/ for the list of supported peripherals.

Cổng giao tiếp ngoài

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®) 5 x USB 3.2 Gen 1 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBackTM button

Chipset

AMD X870

Socket

Socket AM5

Kích thước Main

ATX

Hỗ trợ CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Khe cắm RAM

4 khe ram

Card đồ họa

1 x HDMITM port
2 x USB4 (40Gbps) ports support USB Type-C display outputs
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports 4K@60Hz as specified in HDMI 2.1.
Supports max. 8K@60Hz as specified in DisplayPort 1.4.
Output at USB4_EC1 and USB4_EC2, each requires a USB-C to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution.

Âm thanh

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

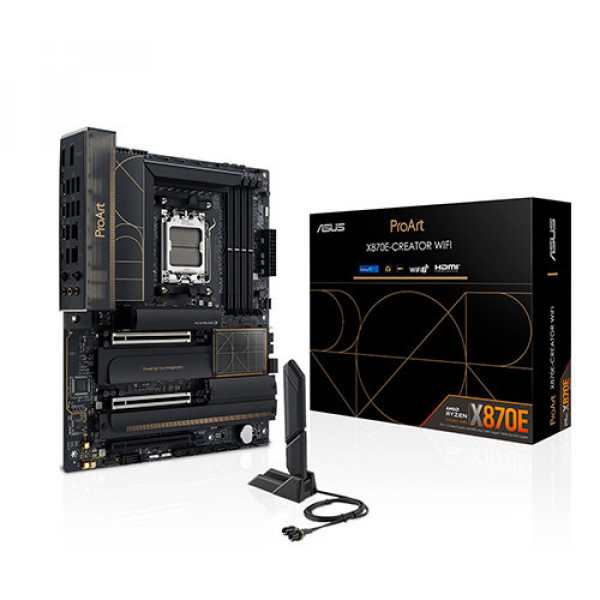

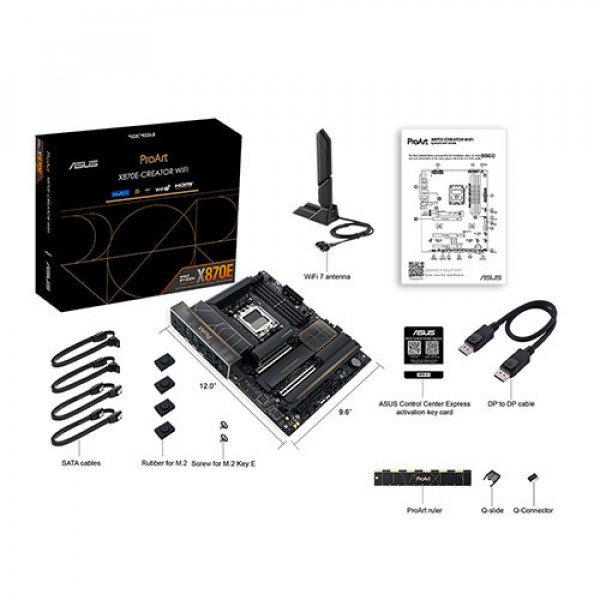

Phụ kiện kèm theo

Sách, đĩa, cáp SATA, ...

Xuất xứ

Trung Quốc
