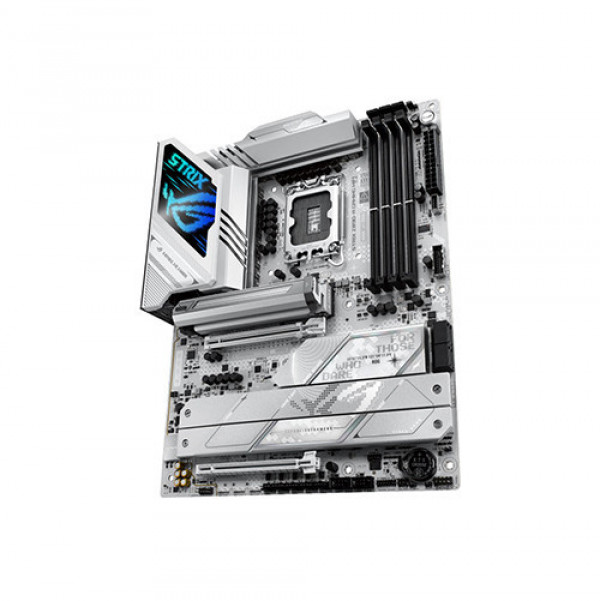

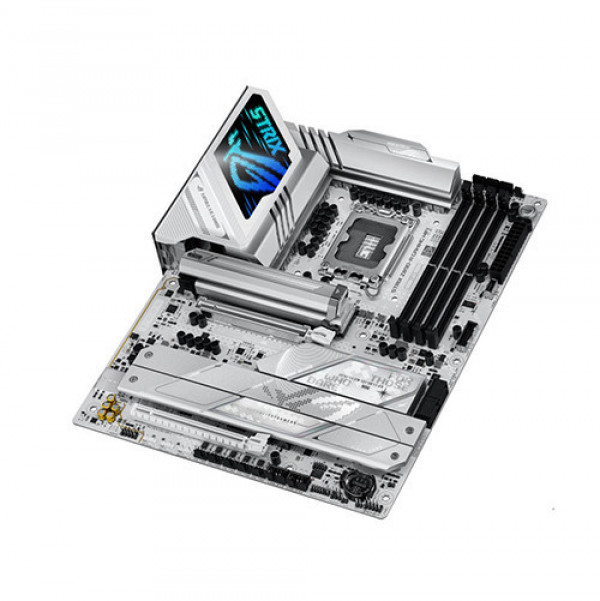

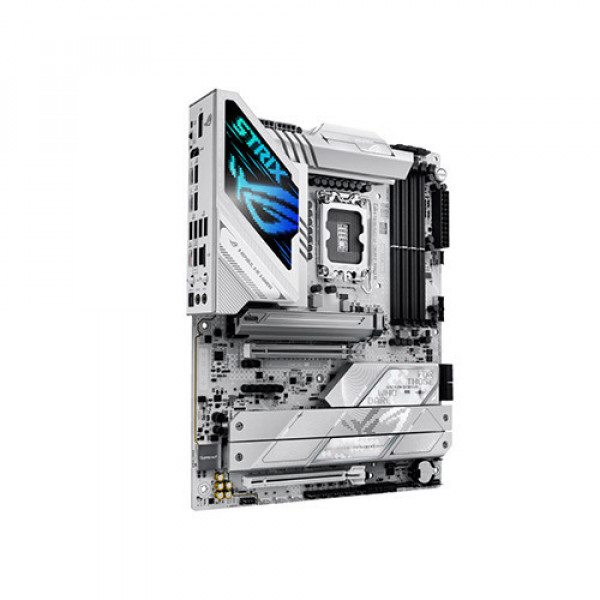

Mainboard Asus ROG STRIX Z890-A GAMING WIFI DDR5 (Thunderbolt 4+Bluetooth)

Tên Hãng

ASUS

CPU hỗ trợ

Support Intel Core Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel Z890 Chipset

RAM hỗ trợ

4 x DIMM slots, max. 192GB, DDR5
Support up to 8600+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Flex, DIMM Fit

Khe cắm mở rộng

Intel Core Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slots

Intel Z890 Chipset
1 x PCIe 4.0x16 slots (support x4 modes)

Ổ cứng hỗ trợ

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
Support Intel Core Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 modes)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)

4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
5 x 4-pin Chassis Fan headers
1 x 4-pin AIO pump header

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector

Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps headers supporting 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Accessories
3 x Addressable Gen 2 header
1 x Chassis intrusion header
1 x CPU overvoltage relay
1 x BIOS Switch button
1 x Front Panel Audio header (F_AUDIO)
1 x Thermal sensor header (USB4)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

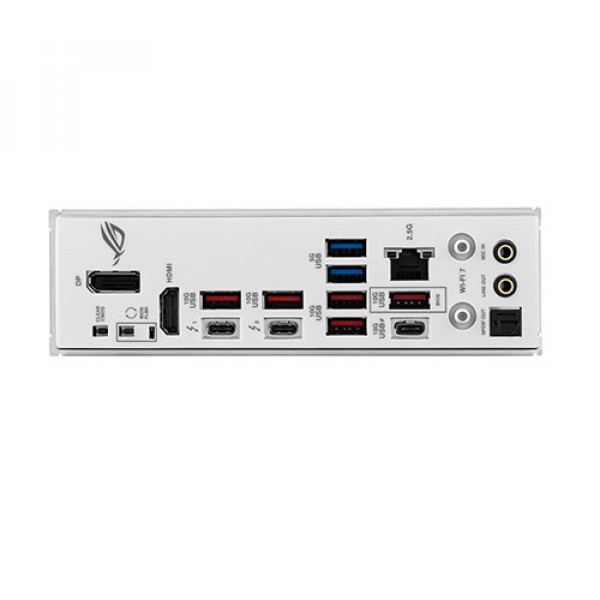

Cổng kết nối (Back Panel)

2 x Thunderbolt 4 ( 2 USB Type-C ports)

6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C)

2 x USB 5Gbps ports (2 x Type A)

1 x Display Port

1 x HDMI port

1 x Wi-Fi Module

1 x Intel 2.5Gb Ethernet port

1 x Marvell AQtion 10Gb Ethernet port

2 x LED-illuminated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1 x Clear CMOS button

LAN / Wireless

LAN

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless

Intel Wi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.

Bluetooth v5.4

Kích cỡ

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Xuất xứ

Trung Quốc
