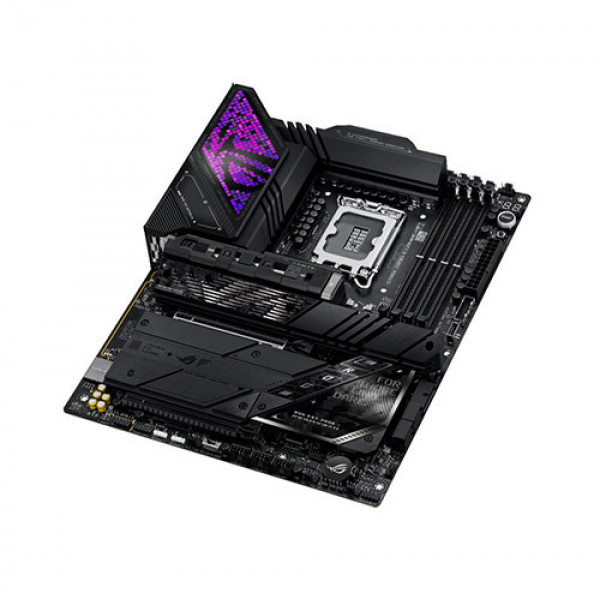

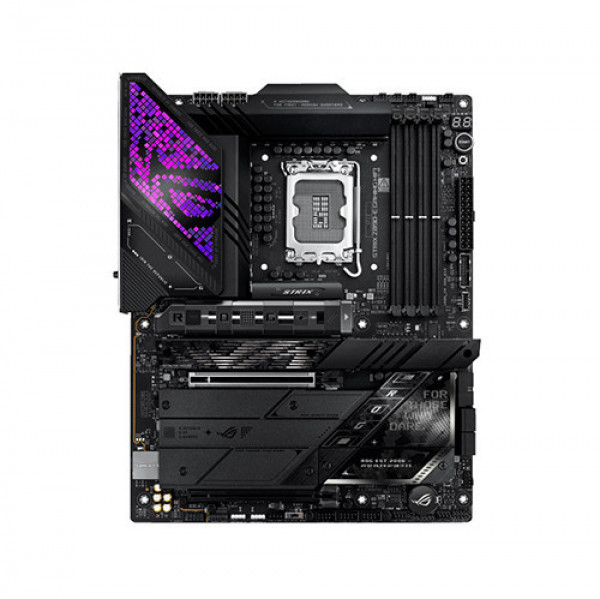

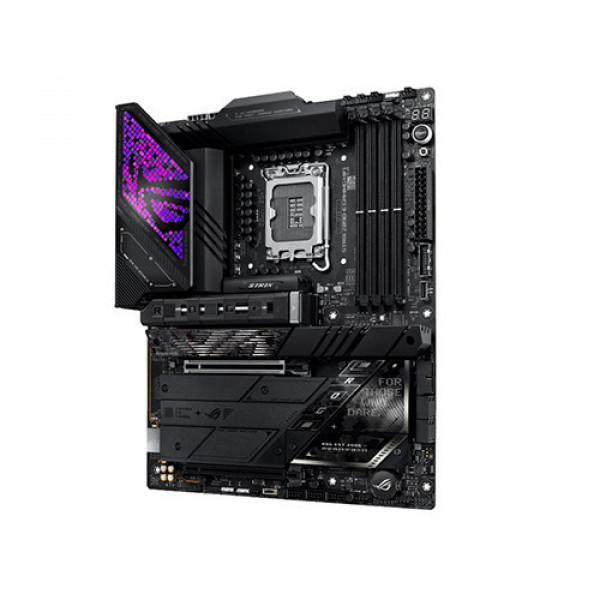

Mainboard Asus ROG STRIX Z890-E GAMING WIFI DDR5

CPU hỗ trợ

Support Intel Core Ultra Processors (Series 2) , LGA1851

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel Z890 Chipset

RAM hỗ trợ

4 x DIMM slots, max. 192GB, DDR5

Support up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile III (AEMP III)

Supports DIMM Flex

Khe cắm mở rộng

Intel Core Ultra Processors(Series 2)

1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)

Intel Z890 Chipset

1 x PCIe 4.0 x16 (hỗ trợ chế độ x4)

Ổ cứng hỗ trợ

Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports*

Support Intel Core Ultra Processors(Series 2)

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)

Intel Z890 Chipset

M.2_5 (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_6 (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_7 (Key M), type 2242/2260/2280 (support PCIe 4.0 x4 & SATA mode)

4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and cooling ports
1 x 4-pin CPU fan header
1 x 4-pin CPU OPT fan port
1 x 4-pin AIO pump header
5 x 4-pin chassis fan header
Power related
1 x 24-pin main power connector
2 x 8-pin +12V CPU power connector
Storage related
7 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB 1 x USB 20Gbps header (USB Type-C supported)

2 x USB 5Gbps header supporting 4 additional USB 5Gbps ports

3 x USB 2.0 header supporting 6 additional USB 2.0 ports Miscellaneous

3 x Addressable Gen2 headers

1 x Chassis Intrusion connector

1 x CPU Over Voltage button

1 x FlexKey button

1 x Front panel audio header (F_AUDIO) 1

1 x Start button

1 x 10-1 pin System Board Header

1 x Thermal sensor header

1 x Thunderbolt port (USB4)

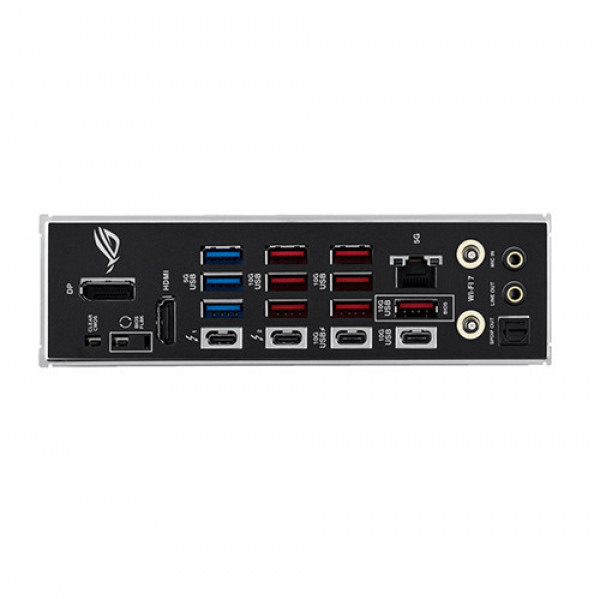

Cổng kết nối (Back Panel)

2 x Thunderbolt 4 (2 x USB Type-C)
9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge)
3 x USB 5Gbps ports (3 x Type-A)
1 x DisplayPort
1 x HDMI port

1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button

LAN / Wireless

LAN

1 x Realtek 5Gb Ethernet
ASUS LANGuard

Wireless

Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz bands**
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth ® v5.4

Kích cỡ

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Xuất xứ

Trung Quốc
