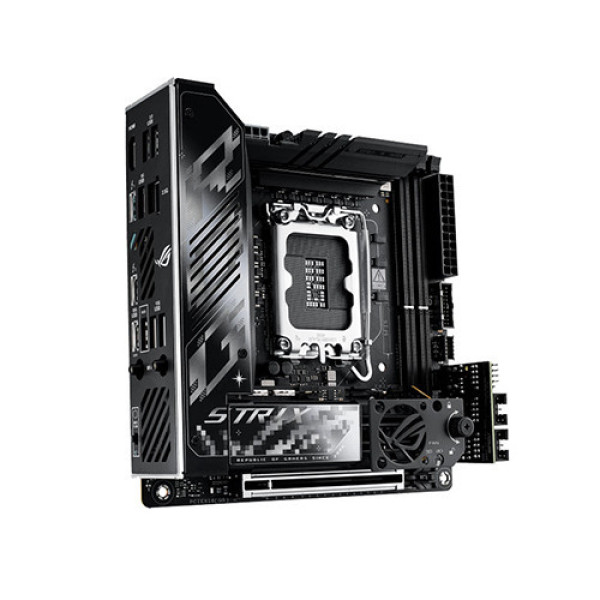

Mainboard Asus ROG STRIX Z890-I GAMING WIFI DDR5 (Thunderbolt 4+Bluetooth)

Tên Hãng

ASUS

CPU hỗ trợ

Support Intel Core Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

Intel Z890 Chipset

RAM hỗ trợ

2 x DIMM slots, max. 96GB, DDR5
Support up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III) Flex DIMM
DIMM Fit

Khe cắm mở rộng

Intel Core Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slots (supports x16 modes)

Ổ cứng hỗ trợ

Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
Support Intel Core Ultra Processors(Series 2)
M.2_1 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2230/2242/2260/2280 (supports PCIe 5.0 x4 mode)

2 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump Port
1 x 4-pin Chassis Fan headers
1 x Extra Flow Fan header

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector

Memory
2 x M.2 slots (Key M)

USB
1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 2 additional USB 5Gbps ports

Accessories
2 x Addressable Gen 2 header
1 x 2-pin Power Button header
2 x USB Type-C
 x SATA 6Gb/s ports
1 x CPU Over Voltage header
1 x Clear CMOS header
1 x Onboard header
1 x PCIe mode switch
2 x USB 2.0 headers support 3 additional USB 2.0 ports
1 x Thermal Sensor header

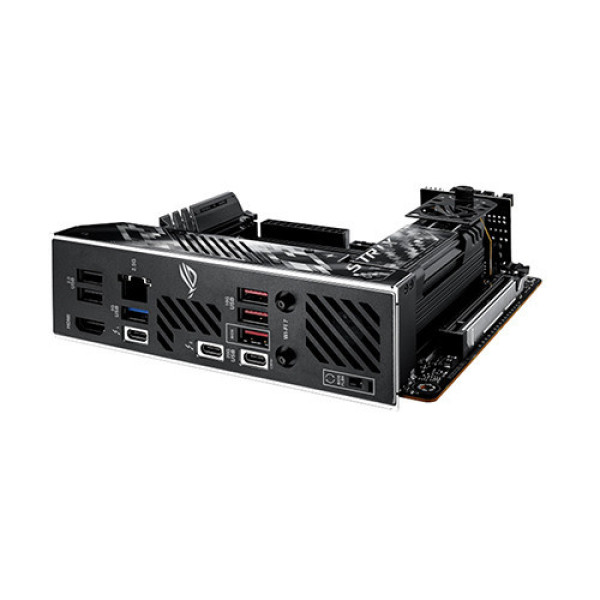

Cổng kết nối (Back Panel)

2 x Thunderbolt 4 (2 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
1 x USB 5Gbps port (1 x Type-A)
1 x BIOS FlashBack button
2 x USB 2.0 port (2 x Type-A)

LAN / Wireless

LAN

1 x Intel 2.5Gb Ethernet

ASUS LANGuard

Wireless

Intel Wi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.

Bluetooth v5.4

Kích cỡ

Mini-ITX Form Factor
6.7 inch x 6.7 inch (17 cm x 17 cm)

Xuất xứ

Trung Quốc
