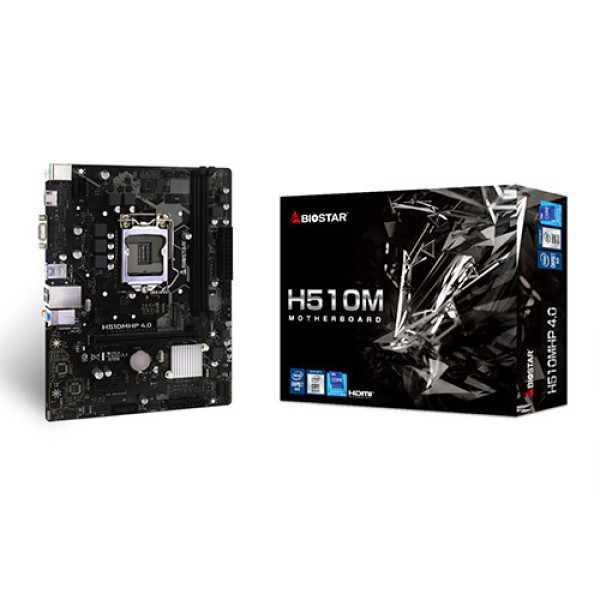

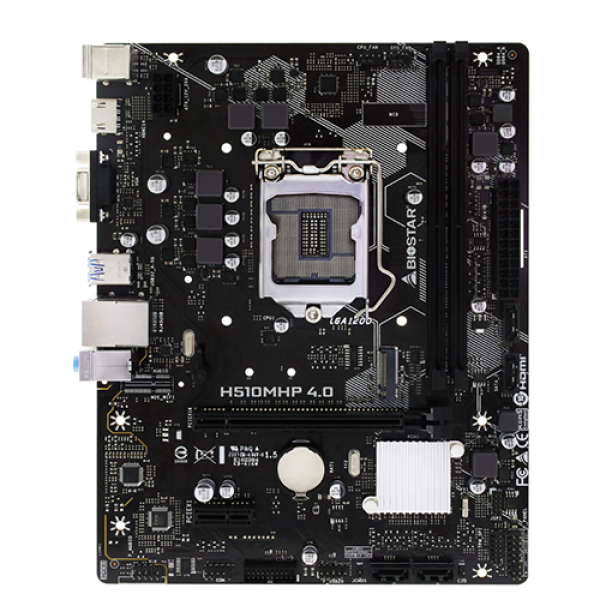

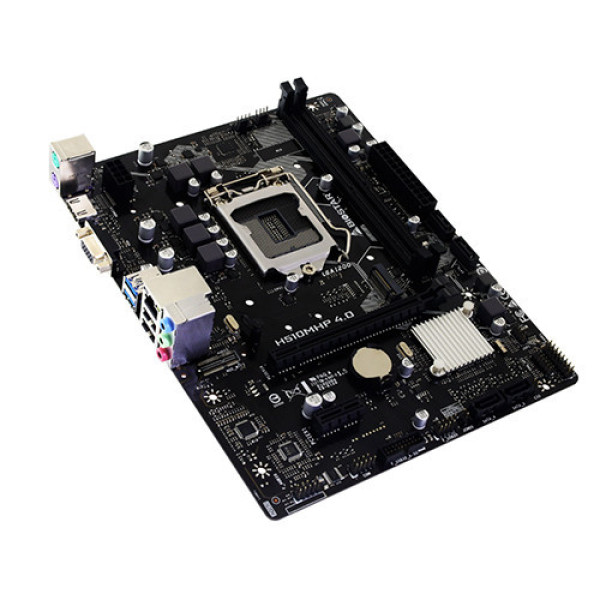

Mainboard BIOSTAR H510MHP 4.0

Tên Hãng

Mainboard BIOSTAR

Model

H510MHP 4.0

CPU hỗ trợ

Intel

Chipset

Intel H470

RAM hỗ trợ

Supports Dual Channel DDR4 3200/2933/2666/2400/2133/1866
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module

Khe cắm mở rộng

1 x PCIe 3.0 x1 Slot
1 x PCle 3.0 x16 Slot (x16 mode)

Ổ cứng hỗ trợ

4 x SATA III Connector (6Gb/s):
Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology
1x M.2 (M Key) Socket:
Supports M.2 Type 2242/2260/2280 SSD module.
Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD

Cổng kết nối (Internal)

4 x SATA III Connector (6Gb/s)
1 x USB 3.2 (Gen1) Header
(each header supports 2 USB 3.2 (Gen1) ports)
1 x USB 2.0 Header
(each header supports 2 USB 2.0 ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
1 x CIO Header

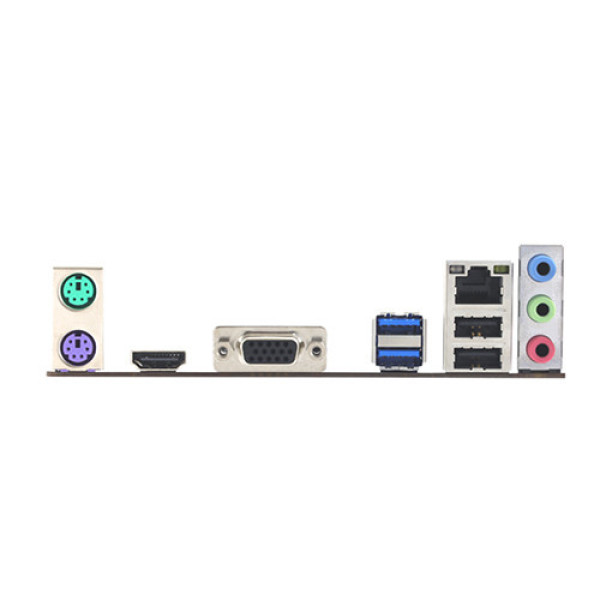

Cổng kết nối (Back Panel)

1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x HDMI Port
1 x VGA Port
2 x USB 3.2 (Gen1) Port
2 x USB 2.0 Port
1 x LAN port
3 x Audio Jack

LAN / Wireless

Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

USB

4 x USB 3.2(Gen1) port
(2 on rear I/Os and 2 via internal headers)
4 x USB 2.0 port
(2 on rear I/Os and 2 via internal headers)

Kích cỡ

18.5cm x 23.5cm ( W x L )

Xuất xứ

Trung Quốc
