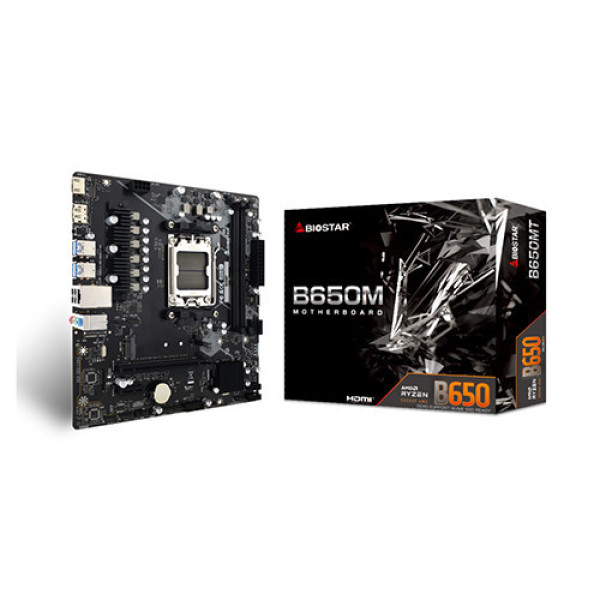

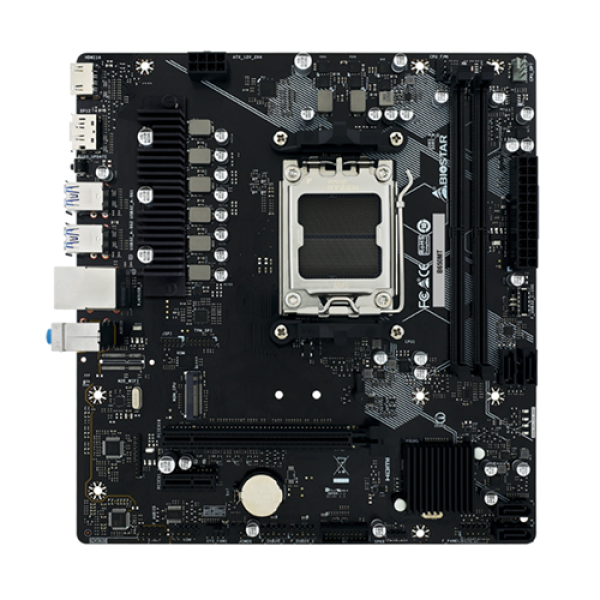

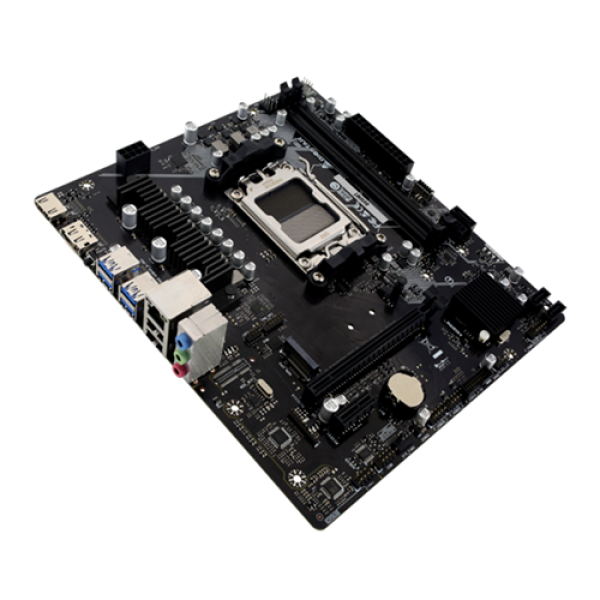

Mainboard BIOSTAR B650MT

Tên Hãng

Mainboard BIOSTAR

Model

B650MP-E PRO

CPU hỗ trợ

AMD

Chipset

AMD B650

RAM hỗ trợ

AMD Ryzen 7000 / 8000 / 9000 series Processors:
Supports Dual Channel DDR5 4800/ 5200/ 5400(OC)/ 5600(OC)/ 6000+(OC)
2 x DDR5 DIMM Memory Slot, Max. Supports up to 96 GB Memory
Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module

Khe cắm mở rộng

AMD Ryzen 7000 / 8000 / 9000 Series Processors
1 x PCIe 4.0 x16 Slot (x16 or x8/x8 mode)
AMD B650 Chipset
1 x PCIe 3.0 x1 Slot

Ổ cứng hỗ trợ

Total support 1 x M.2 Socket and 4 x SATA (6Gb/s) ports
AMD Ryzen 7000 / 8000 / 9000 Series Processors
1 x M.2 (Key M) Socket (M2M_CPU) :
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s) - NVMe SSD
AMD B650 Chipset
4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10

Cổng kết nối (Internal)

4 x SATA III Connector (6Gb/s)
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x USB 3.2 (Gen2) Type-C Header
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x CPU water cooling connector (CPU_OPT)
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header

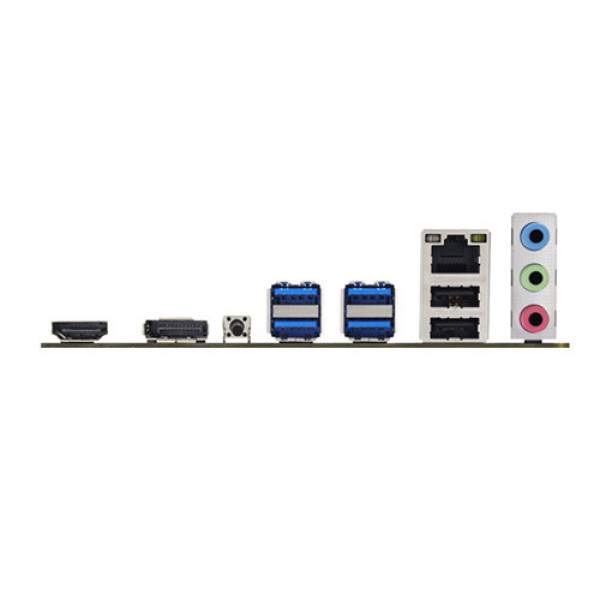

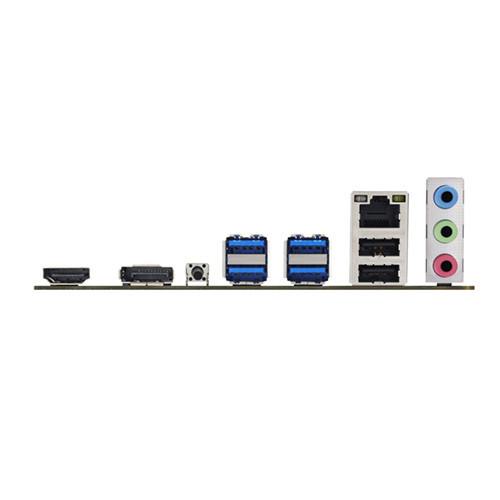

Cổng kết nối (Back Panel)

1 x BIOS UPDATE Button
1 x HDMI Port (HDMI1.4)
1 x DP Port (DP1.2)
4 x USB 3.2 (Gen1) Type-A Ports
2 x USB 2.0 Type-A Ports
1 x Giga LAN port
3 x Audio Jack

LAN / Wireless

Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

USB

1 x USB 3.2 Gen2 Type-C port (1 via internal headers)
6 x USB 3.2 Gen1 ports (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)

Kích cỡ

22.1cm x 23.5cm ( W x L )

Xuất xứ

Trung Quốc
