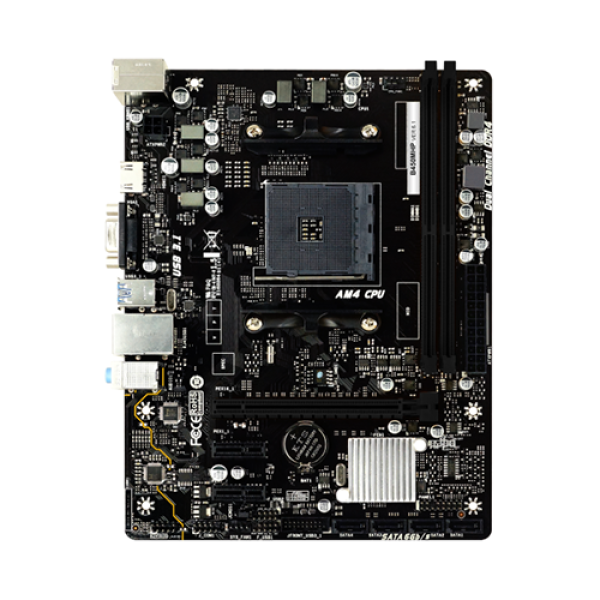

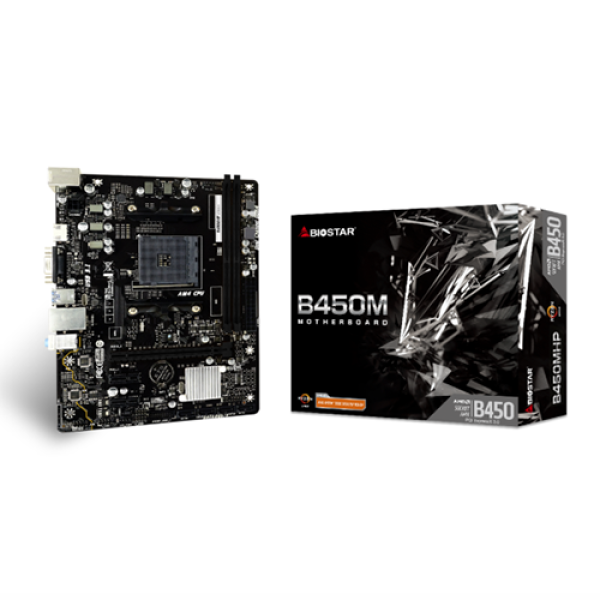

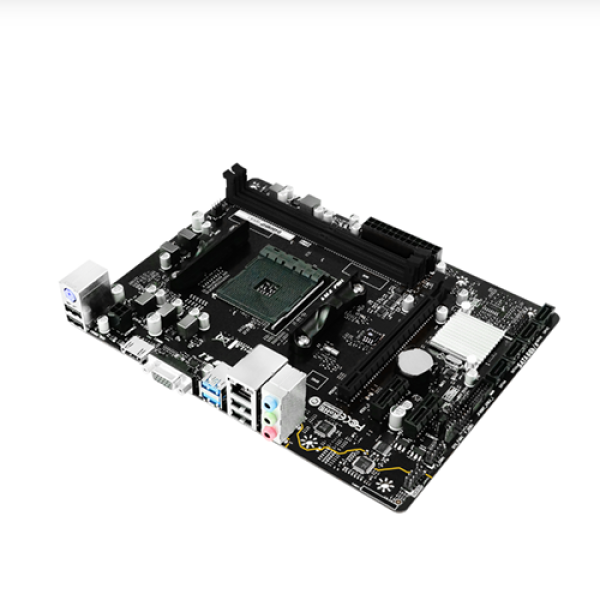

Mainboard BIOSTAR B450MHP

Tên Hãng

Mainboard BIOSTAR

Model

B450MHP

CPU hỗ trợ

AMD

Chipset

AMD B450

RAM hỗ trợ

Supports Dual Channel DDR4 1866/2133/2400/2666/2933/3200+(OC)
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 8/16/32 GB DDR4 module

Khe cắm mở rộng

AMD Processors
1 x PCIe 3.0 x16 Slot (The bandwidth is depended on CPU)
AMD Chipset
2 x PCIe 2.0 x1 Slot

Ổ cứng hỗ trợ

4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10

Cổng kết nối (Internal)

4 x SATA III 6.0Gb/s Connectors
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Serial Header

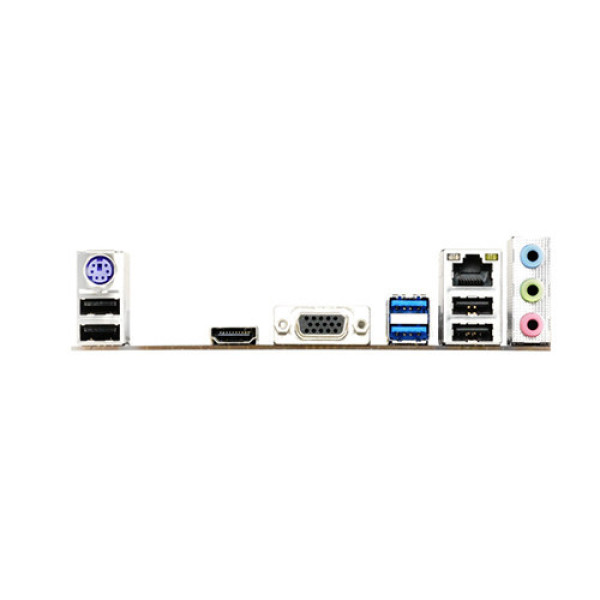

Cổng kết nối (Back Panel)

1 x PS/2 Keyboard/ Mouse
1 x VGA Port
1 x HDMI Port
1 x LAN port
2 x USB 3.2 (Gen1) Ports
4 x USB 2.0 Ports
3 x Audio Jack

LAN / Wireless

Realtek RTL8111H-VB
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

USB

4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)

Kích cỡ

22.6cm x 17.4cm ( W x L )

Xuất xứ

Trung Quốc
