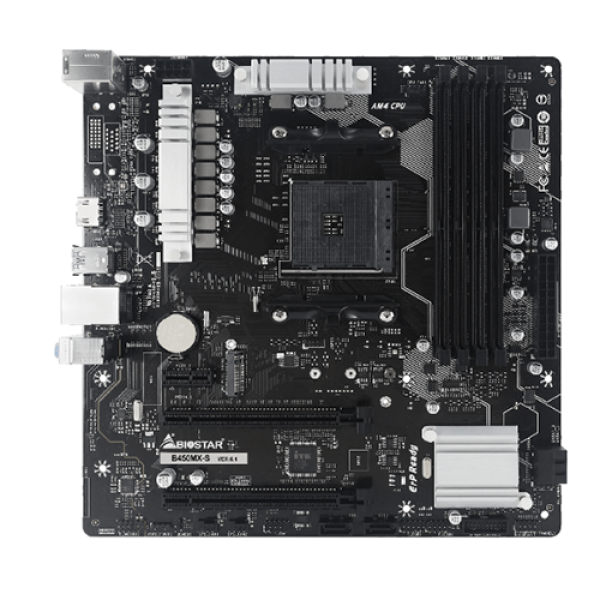

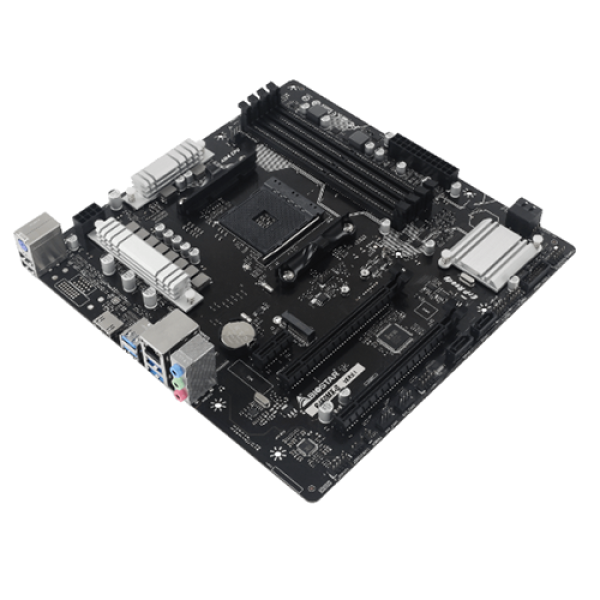

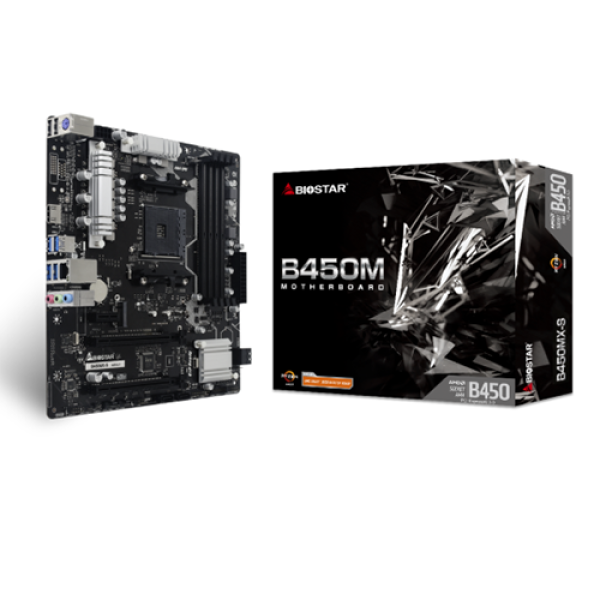

Mainboard BIOSTAR B450MX-S

Tên Hãng

Mainboard BIOSTAR

Model

B450MX-S

CPU hỗ trợ

AMD

Chipset

AMD B450

RAM hỗ trợ

Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667
Supports Dual Channel DDR4 2933(OC)/ 3200(OC)/ 3600(OC)/ 4000(OC) / 4066(OC)/ 4133(OC)/ 4200(OC)/ 4266(OC)/ 4333+(OC)
4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module

Khe cắm mở rộng

1 x PCIe 3.0 x16 Slot:
Supports PCIe 3.0 x 16 mode with AMD Ryzen™ processors.
Supports PCIe 3.0 x 8 mode AMD Ryzen™ with Radeon Vega Graphics processors.
1 x PCIe 2.0 x 16 Slot (x4 mode)
1 x PCIe 2.0 x 1 Slot

Ổ cứng hỗ trợ

4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD
Supports SATA III (6Gb/s) SSD

Cổng kết nối (Internal)

4 x SATA III (6.0Gb/s) Connectors
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
2 x System Fan Connectors
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x Internal Stereo Speaker Header
1 x S/PDIF out Connector
1 x COM Port Header

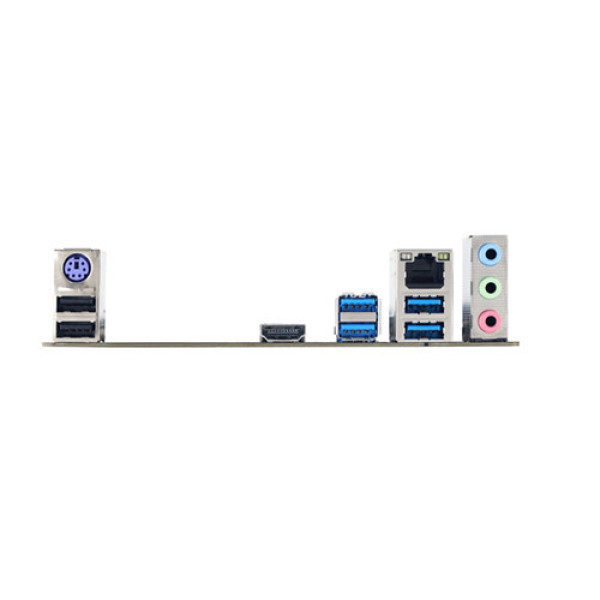

Cổng kết nối (Back Panel)

1 x PS/2 Keyboard/ Mouse Port
1 x HDMI Port
1 x LAN port
4 x USB 3.2 (Gen1) Ports
2 x USB 2.0 Ports
3 x Audio Jack

LAN / Wireless

Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

USB

6 x USB 3.2 (Gen1) ports(4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)

Kích cỡ

24.4cm x 24.4cm ( W x L )

Xuất xứ

Trung Quốc
