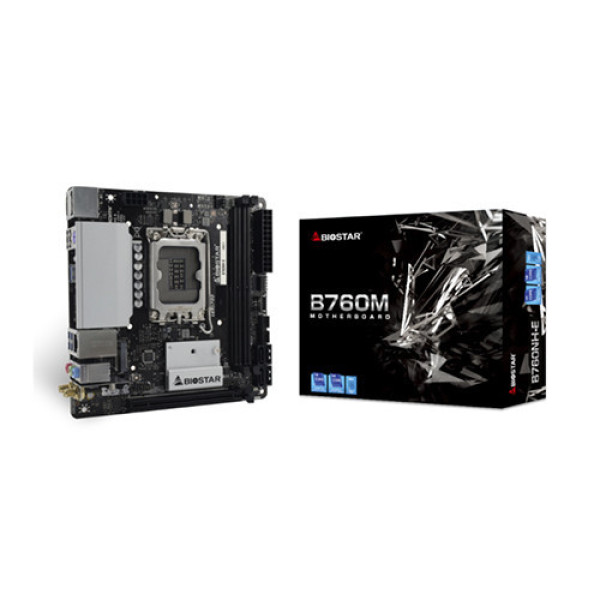

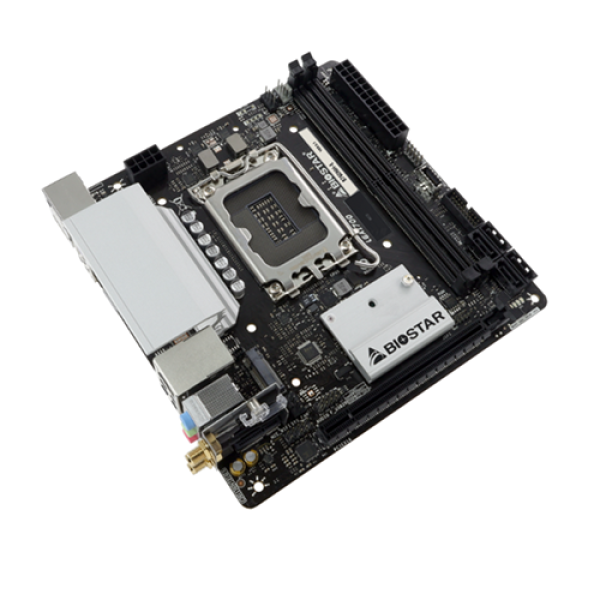

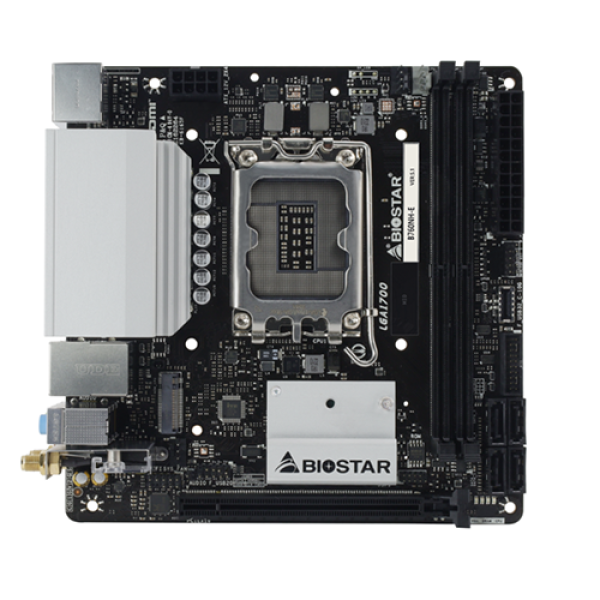

Mainboard BIOSTAR B760NH-E

Tên Hãng

Mainboard BIOSTAR

Model

B760NH-E

CPU hỗ trợ

Intel

Chipset

Intel B760

RAM hỗ trợ

Supports Dual Channel DDR5 - 6400+(OC) / 6200+(OC) / 6000+(OC) / 6000(OC) / 5800(OC) / 5600(OC)
2 x DDR5 DIMM Memory Slot, Max. Supports up to 96 GB Memory
Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module
Support Intel Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

INTEL 12th/13th/14th Processors
1 x PCIe 5.0 x16 Slot (x16 mode)

Ổ cứng hỗ trợ

Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports
Intel 12th/13th/14th Processors
1 x M.2 (M Key) Socket (M2M_CPU):
Supports M.2 Type 2280 SSD module
Supports PCIe 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD & SATA lll (6Gb/s) SSD
Intel B760 Chipset
4 x SATA III Connector (6Gb/s): Supports AHCI & Intel Rapid Storage Technology

Cổng kết nối (Internal)

4 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x USB 3.2 (Gen2) Type-C Header
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header

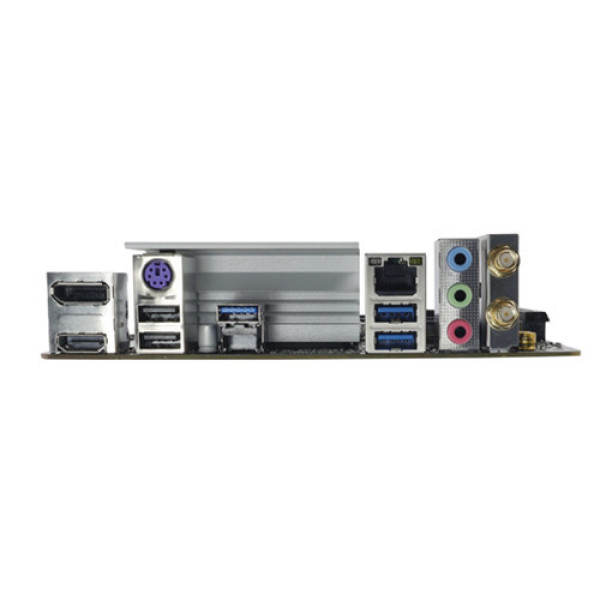

Cổng kết nối (Back Panel)

2 x WIFI Antenna Ports
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI Port
1 x DP Port
1x LAN Port
1 x USB 3.2 (Gen1) Port
2 x USB 3.2 (Gen2) Ports
2 x USB 2.0 ports
3 x Audio Jack

LAN / Wireless

Realtek RTL8125B
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability

USB

3 x USB 3.2 (Gen1) ports (1 on rear I/Os and 2 via internal header)
2 x USB 3.2 (Gen2) ports (2 on rear I/Os)
1 x USB 3.2 Type-C (Gen2) port (1 via internal header)
4 x USB 2.0 ports (2 on rear I/Os and 2 via internal header)

Kích cỡ

17cm x 17cm ( W x L )

Xuất xứ

Trung Quốc
