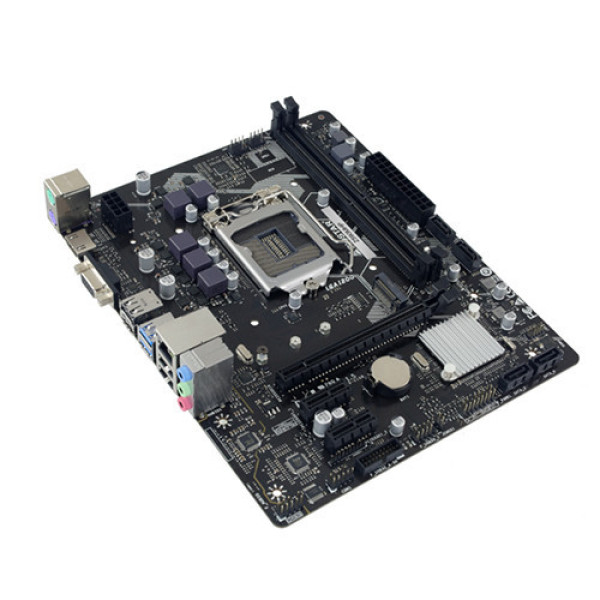

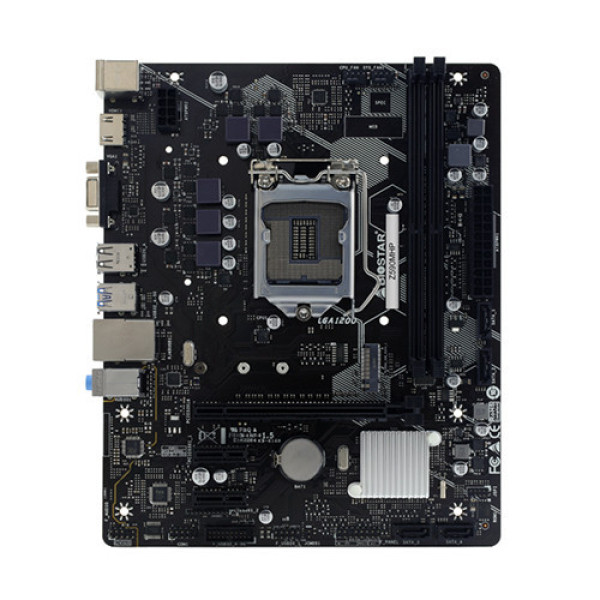

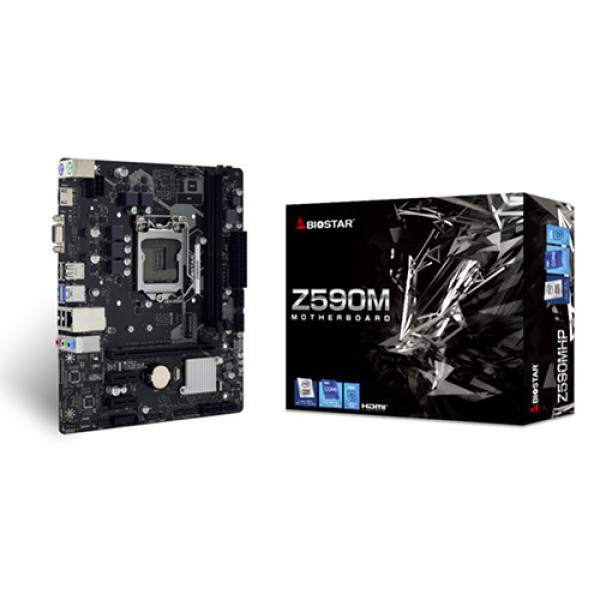

Mainboard BIOSTAR Z590MHP

Tên Hãng

Mainboard BIOSTAR

Model

Z590MHP

CPU hỗ trợ

Intel

Chipset

Intel Z590

RAM hỗ trợ

Supports Dual Channel DDR4 - 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32 GB DDR4 module

Khe cắm mở rộng

2 x PCIe 3.0 x1 Slot
1 x PCle 3.0/ 4.0 x16 Slot (x16 mode)

Ổ cứng hỗ trợ

4 x SATA III Connector (6Gb/s)
Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology
1 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module.
Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6Gb/s) SSD

Cổng kết nối (Internal)

4 x SATA III Connector (6Gb/s)
1 x USB 3.2 (Gen1) Header
(each header supports 2 USB 3.2 (Gen1) ports)
1 x USB 2.0 Header
(each header supports 2 USB 2.0 ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Port Header

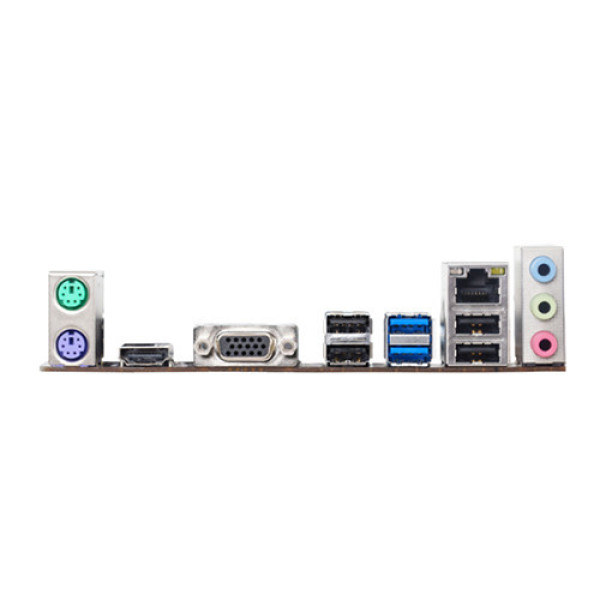

Cổng kết nối (Back Panel)

1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x HDMI Port (HDMI1.4)
1 x VGA Port
2 x USB 3.2 (Gen1) Ports
4 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack

LAN / Wireless

Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

USB

4 x USB 3.2 (Gen1) ports
(2 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports
(4 on rear I/Os and 2 via internal headers)

Kích cỡ

18.5cm x 22.6cm ( W x L )

Xuất xứ

Trung Quốc
