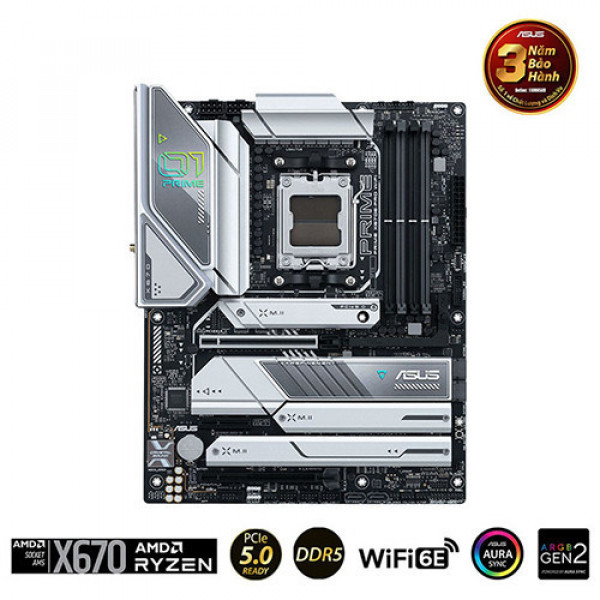

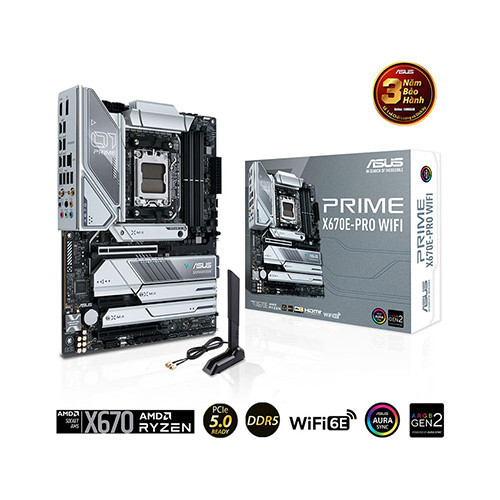

Mainboard ASUS PRIME X670E-PRO WIFI-CSM

• AMD Ryzen™ 7000 Series
• CPU Socket AM5

-AMD Ryzen™ 7000 Series:

• 1 x PCIe 5.0 x16

-AMD X670 Chipset:

• 1 x PCIe 4.0 x16 (Support x4 mode)
• 1 x PCIe 4.0 x4

• 1 x M.2 2242/ 2260/ 2280 PCIe 5.0 x4
• 2 x M.2 2242/ 2260/ 2280 PCIe 4.0 x4
• 1 x M.2 2242/ 2260/ 2280/ 22110 Gen3.0 x4
• 4 x SATA 6Gb/s
• Hỗ trợ Raid 0, 1, 10

• LAN: 1 x Realtek 2.5Gb Ethernet
• Wireless: Wi-Fi 6E 2x2 (802.11 a/b/g/n/ac/ax)

Fan and cooling

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x W_PUMP+ header

Power

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

Storage

4 x M.2 slot

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 header (Type-C)

1 x USB 3.2 Gen 1 header

3 x USB 2.0 headers

Miscellaneous

2 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Clear CMOS button

1 x COM Port header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x Power button

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header

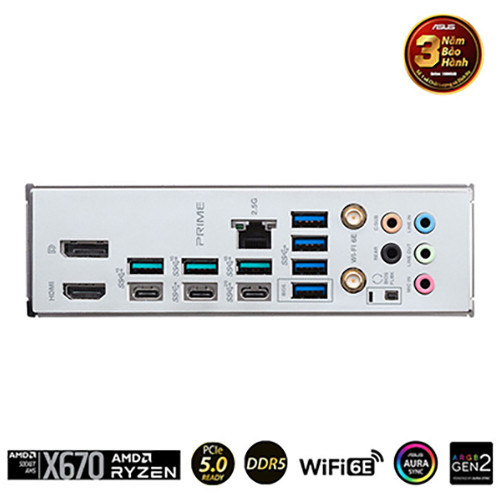

1 x USB 3.2 Gen 2x2 Type-C

1 x USB 3.2 Gen 2 Type-C

1 x USB 3.2 Gen 1 Type-C

3 x USB 3.2 Gen 2 Type-A

4 x USB 3.2 Gen 1 Type-A

1 x Display Port

1 x HDMI

1 x WiFi module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jack

1 x BIOS FlashBack™  button
