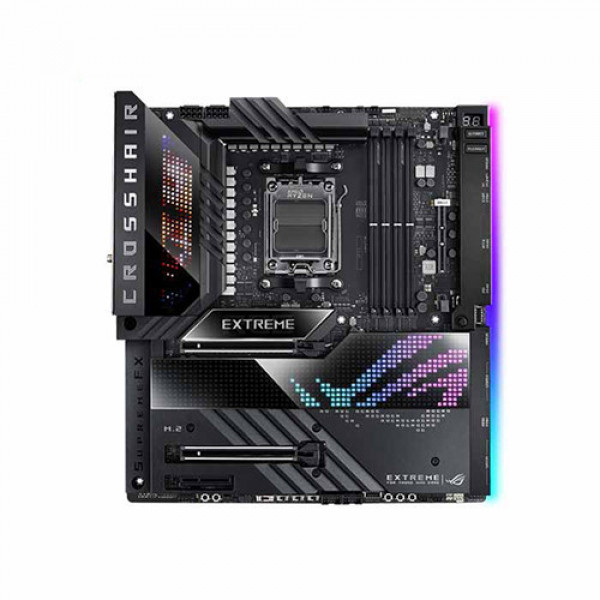

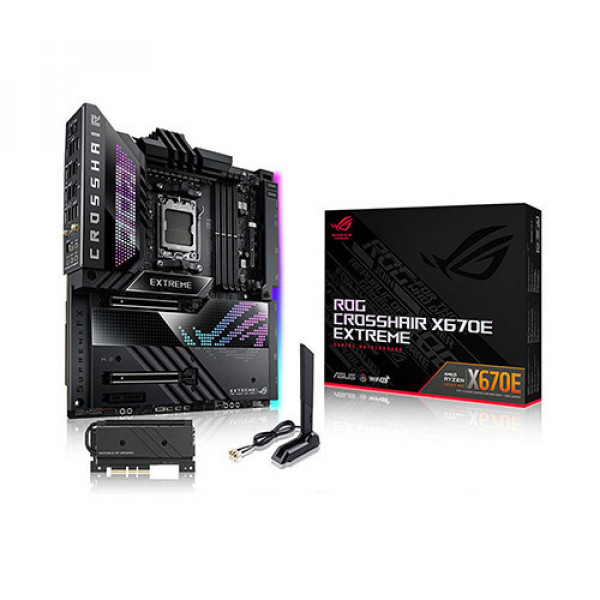

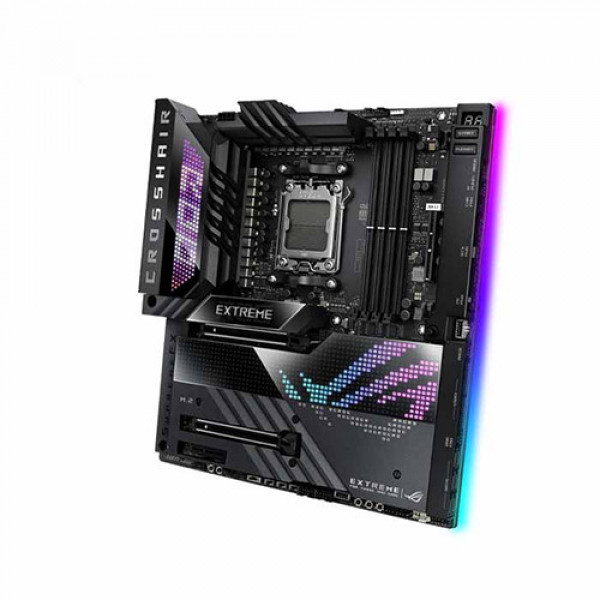

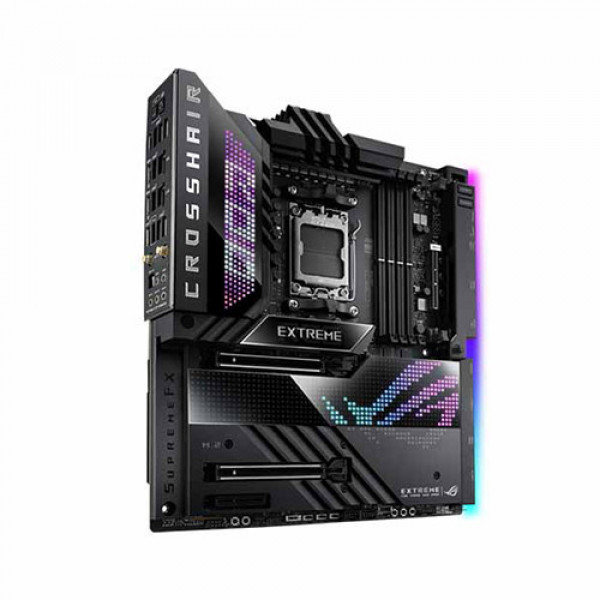

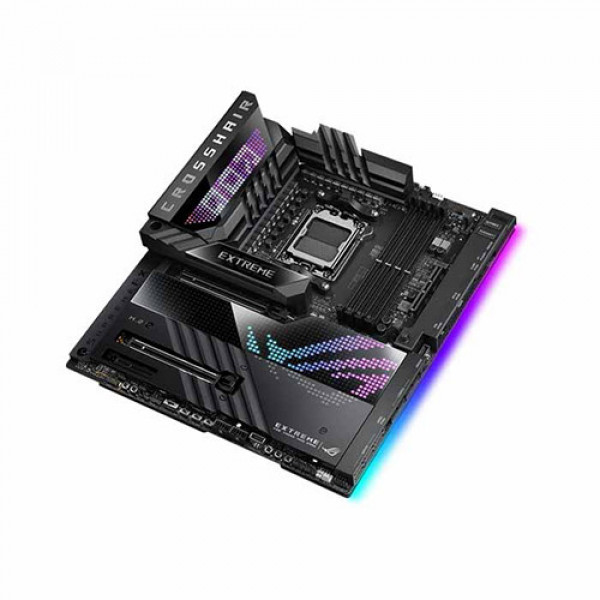

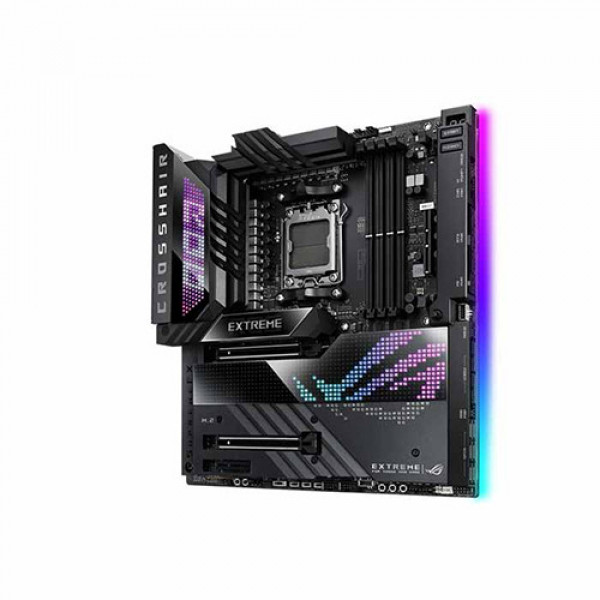

Mainboard Asus ROG CROSSHAIR X670E EXTREME DDR5

Tên Hãng

Asus

Model

ROG CROSSHAIR X670E EXTREME

CPU hỗ trợ

AMD

Chipset

AMD X670

RAM hỗ trợ

4x DDR5 memory slots, support up to 128GB 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC,Un-buffered Memory

Khe cắm mở rộng

2 x PCIe 5.0 x16 slots, 1 x PCIe 4.0 x4 slot

Ổ cứng hỗ trợ

Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
GEN-Z.2_1 slot (Key M) via ROG GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
AMD X670 Chipset
GEN-Z.2_2 slot (Key M) via ROG GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x WB_SENSOR header
1 x 2-pin Water In header
1 x 2-pin Water Out header
1 x 3-pin Water Flow header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card connector
Storage related
2 x M.2 slots (Key M)
1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^®)
1 x USB 3.2 Gen 2 connector (supports USB Type-C^®)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
1 x Addressable Gen 2 header
1 x Alteration Mode Switch
1 x Aura RGB header
1 x BIOS Switch button
2 x BCLK button
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
1 x Osc sence header
12 x ProbeIt Measurement Points
1 x ReTry button
1 x RSVD switch
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x V_Latch switch
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

Cổng kết nối (Back Panel)

2 x USB4^® with Intel^® JHL8540 USB4^® controller ports (2 x USB Type-C^®)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C^®)
1 x Wi-Fi Module
1 x Intel^® 2.5Gb Ethernet port
1 x Marvell^® AQtion 10Gb Ethernet port
5 x LED-illuminated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button

LAN / Wireless

1 x Intel^® 2.5Gb Ethernet
1 x Marvell^® AQtion 10Gb Ethernet

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Kích cỡ

EATX Form Factor
12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )

Xuất xứ

Trung Quốc
