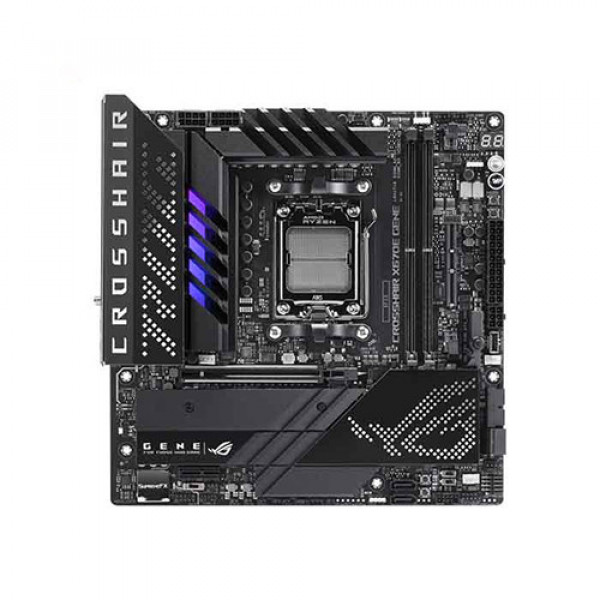

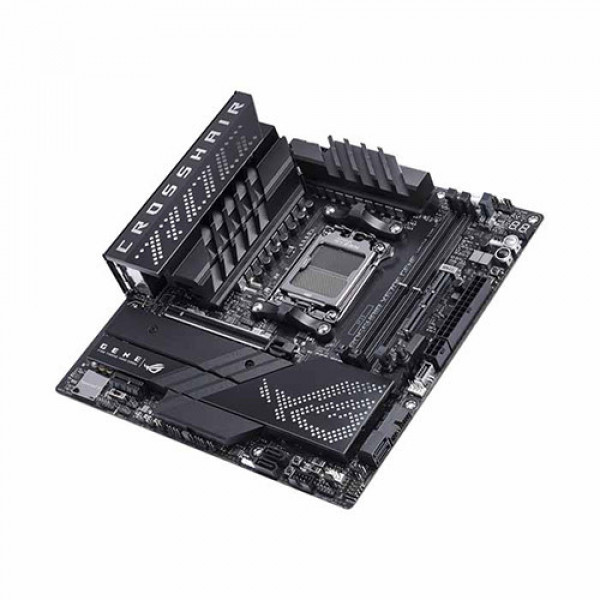

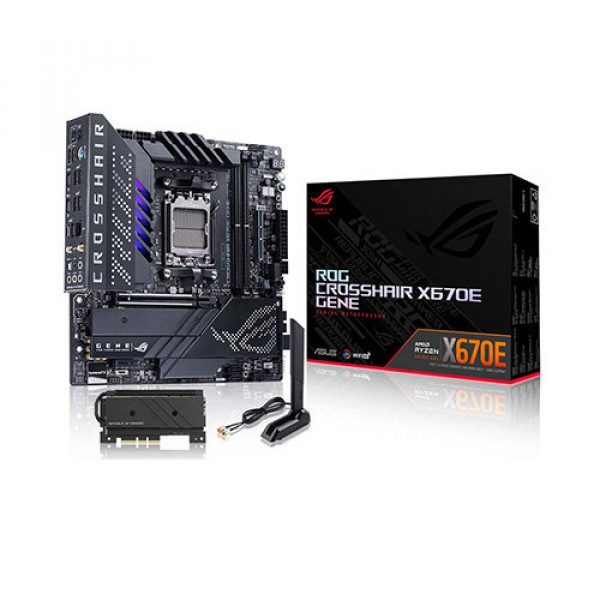

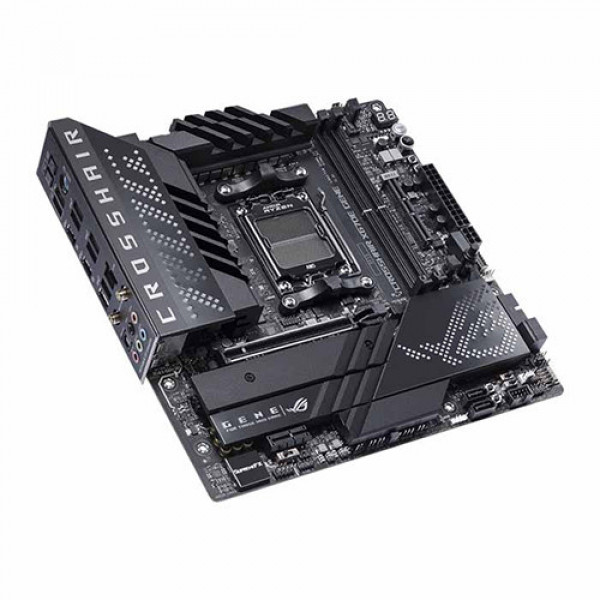

Mainboard Asus ROG CROSSHAIR X670E GENE DDR5

Tên Hãng

Asus

Model

ROG CROSSHAIR X670E GENE

CPU hỗ trợ

AMD

Chipset

AMD X670

RAM hỗ trợ

2x DDR5 memory slots, support up to  64GB DDR5 6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory

Khe cắm mở rộng

1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x1 slot

Ổ cứng hỗ trợ

Total supports 3 x M.2 slots and 4 x SATA
6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
GEN-Z.2_1 slot (Key M) via GEN-Z.2, type
2242/2260/2280/22110 (supports PCIe 5.0 x4)**
AMD X670 Chipset
GEN-Z.2_2 slot (Key M) via GEN-Z.2, type
2242/2260/2280/22110 (supports PCIe 4.0 x4)
4 x SATA 6Gb/s ports

Cổng kết nối (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan header
3 x 4-pin Full Speed Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
1 x 6-pin PCIe Graphics Card connector
Storage related
1 x M.2 slots (Key M)
1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x 80 Light Bar jumper
2 x Addressable Gen 2 headers
1 x Alteration Mode Switch
1 x Aura RGB header
2 x BCLK button
1 x FlexKey button
1 x 10-1 pin Front Panel Audio header (AAFP)
1 x LN2 Mode jumper
1 x Osc sence header
12 x ProbeIt Measurement Points
1 x ReTry button
1 x RSVD switch
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header

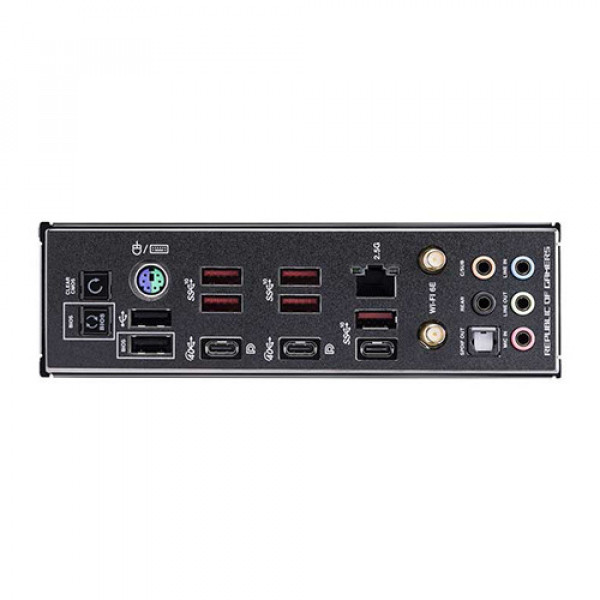

Cổng kết nối (Back Panel)

2 x USB4^® ports with Intel^® JHL8540 USB4^® controller (2 x USB Type-C^®)
6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C^®)
2 x USB 2.0 ports (2 x Type-A)
1 x Wi-Fi Module
1 x Intel^® 2.5Gb Ethernet
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button
1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless

1 x Intel^® 2.5Gb Ethernet

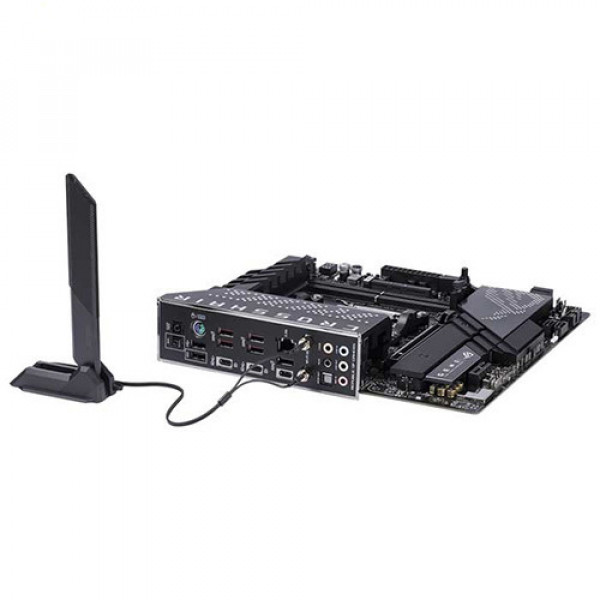

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Kích cỡ

micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Xuất xứ

Trung Quốc
